Conical Screw Mixer: Benefits for Difficult and Sensitive Powder Applications
June 16, 2026
​Difficult and sensitive powder applications demand more from the mixing step. In these processes, the goal is not only to combine ingredients— It is also to handle the material in a way that supports consistency, protects product quality, and fits the needs of the broader operation. That is where a conical screw mixer can offer clear advantages.
A conical screw mixer supports gentle, low-shear mixing

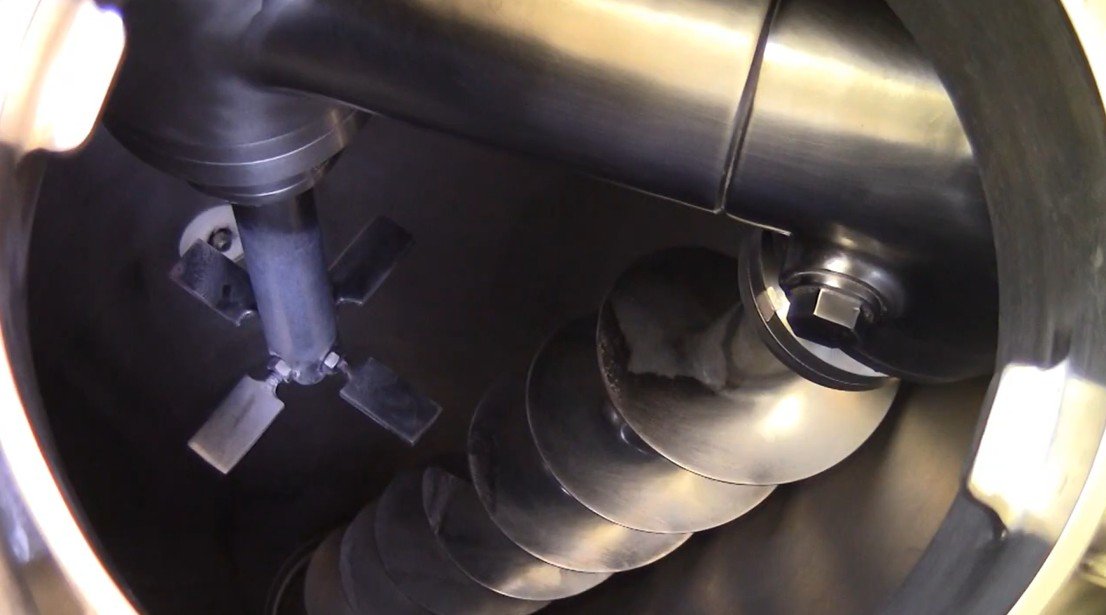

A conical screw mixer moves material in a controlled and efficient way: The screw lifts product upward along the vessel wall while the screw assembly rotates through the batch, gravity then allows the material to flow back down through the center, and a continuous mixing pattern with steady circulation rather than harsh mechanical impact is created.
That operating principle is important for sensitive powders. Some materials can break down, smear, or separate when exposed to too much shear, while others may lose key physical properties if mixing becomes too aggressive.
A gentler mixing approach can help preserve several important material characteristics, including:
-
particle structure
-
blend consistency
-
flow behavior
-
functional product properties
Low-shear mixing remains valuable in powder processing because it does not just rely on force alone, the mixer uses a controlled flow pattern that supports uniform blending while reducing unnecessary stress on the material.
Difficult powders often require more controlled handling
Some powders mix easily, while others create more challenges. Cohesive materials may resist movement, fragile particles may fracture during blending, while segregative materials may separate instead of staying uniform. Differences in particle size or density can also create problems during circulation, discharge, or scale-up.
A conical screw mixer helps address those issues through controlled handling— instead of pushing material through an intense mixing zone, it promotes a steady recirculation pattern that is easier on the product. That can make a meaningful difference when product quality depends on preserving powder condition throughout the batch.
This approach also helps when operating conditions vary. Some processes run different fill levels, formulations, or production volumes over time. In those cases, the mixer needs to stay reliable across changing requirements, not just perform well under one set of conditions.
The design helps protect blend quality and particle integrity
In sensitive powder applications, a good blend is not only about distribution, it is also about preservation. A batch may look uniform at the end of the process, but if mixing has damaged the particles or changed how the material behaves, the result may still fall short.
That is why particle integrity matters alongside homogeneity; powders used in higher-value or performance-driven products often need to retain key properties throughout the mixing cycle, such as:
-
particle shape
-
bulk behavior
-
surface condition
-
flow characteristics
-
functional performance
A conical screw mixer supports this need by combining blend movement with gentle treatment. The goal is to circulate the batch thoroughly without applying more stress than the material requires.
That can be especially helpful for powders that are:
-
friable
-
prone to segregation
-
sensitive to heat
-
sensitive to shear
This balance between movement and protection is one of the mixer’s practical strengths. It helps manufacturers achieve consistent blending while reducing the risk of overprocessing the material.
A conical screw mixer can also support process flexibility
Mixer selection is not only about blend performance, it is also about how well the equipment fits real production demands. Many manufacturers need a process that can adapt to changing materials, sanitation needs, operating conditions, and product requirements over time.
A conical screw mixer can support that flexibility. Depending on the application, it may support heating, cooling, drying, humidification, and operation under vacuum or pressure. Some configurations also allow clean-in-place or steam-in-place cleaning, which can help with changeovers, hygiene, and controlled cleaning procedures.
That flexibility can make the mixer more useful across a wider range of products. Instead of serving one narrow purpose, it can support a more adaptable processing strategy as production needs evolve. Conical screw mixers and related mixing technologies can support broader powder handling and processing goals.
Scale-up matters in sensitive powder applications
Many mixing processes look successful at small scale, but the real test often comes later, when a product moves from development into larger production. At that stage, problems with circulation, blend quality, or material handling can become more visible. A process that seemed stable in the lab may become harder to control as batch size increases.
That is why scale-up matters in difficult and sensitive powder applications. Manufacturers need confidence that the mixing principle used during development will still support quality and consistency at production scale. Without that continuity, the move to larger output can introduce added risk.
A conical screw mixer can help reduce that uncertainty when the same mixing principle carries from lab work into larger units. Equipment such as the Nauta Minimix supports that path and helps create a more practical transition from testing to production.
For sensitive powders, predictable scale-up is not just a convenience, it can directly affect process confidence, product quality, and development speed.
Conical screw mixers fit applications where precision matters
A conical screw mixer is not the right choice for every process; Some products need higher shear or a different mixing approach. But for difficult and sensitive powder applications, this design offers a strong combination of benefits: gentle handling, controlled circulation, process flexibility, and scale-up continuity all add to its value.
That is why this mixer often fits applications where precision matters. In those settings, it does more than blend ingredients. It helps manufacturers protect material condition, maintain batch consistency, and operate with more control as process demands change.
For teams evaluating mixing solutions for challenging powder processes, Hosokawa Micron Powder Systems offers conical screw mixer technology and process expertise to support long-term performance and flexibility.
